Treble Booster Screaming Bird Step 1 of 4

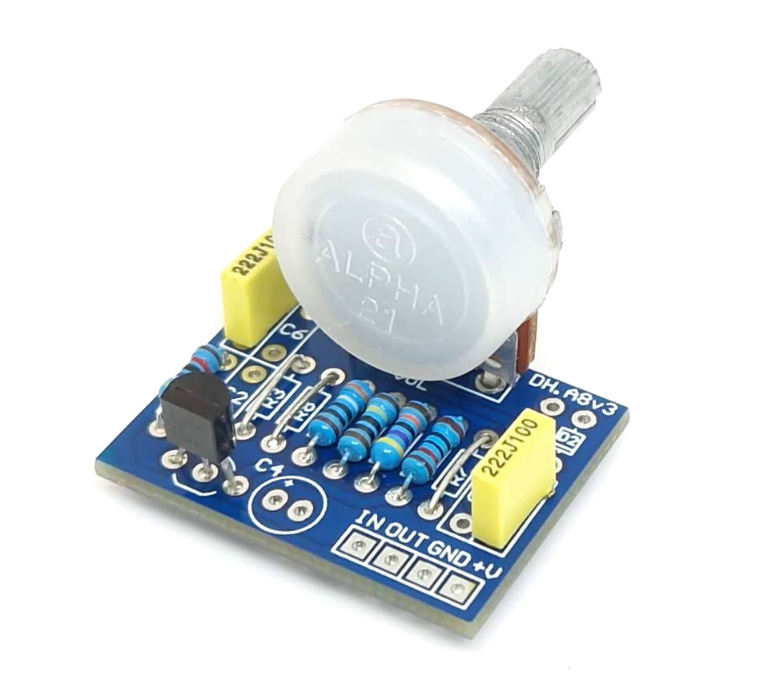

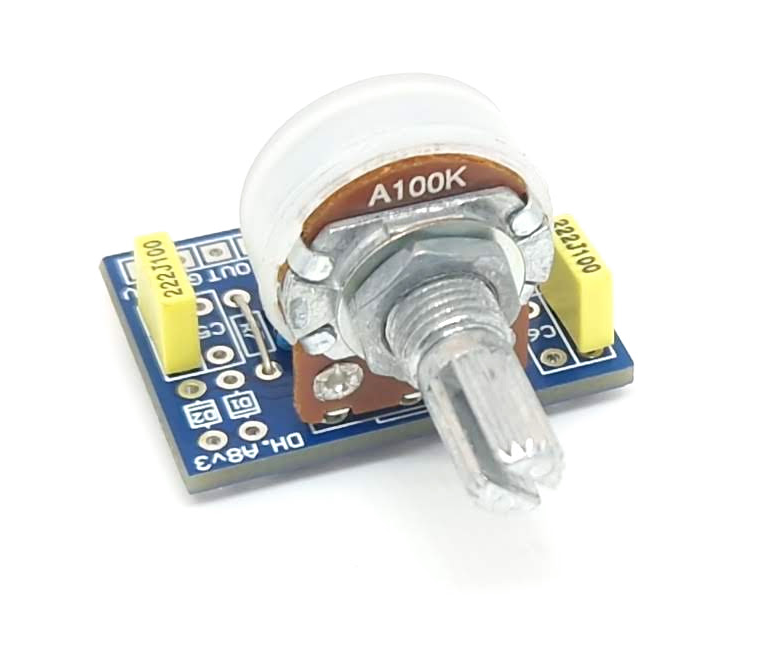

Dha8_assembled

Effect type: boost

Pedal description

This treble booster is the Screaming Bird. It is a Linear Power Booster tuned for highs. Whether it's overdriving an amp or just adding some highs to your sound, it will make your guitar cut through any mix.

Controls

  • Gain: controls the gain

Kit contents

Capacitors
2x     2.2NF 0.0022UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
Transistor
1x     2N5088 NPN GENERAL PURPOSE TRANSISTOR
Resistors
1x     1M OHM 1/4W 1% METAL FILM RESISTOR
1x     470K OHM 1/4W 1% METAL FILM RESISTOR
1x     47K OHM 1/4W 1% METAL FILM RESISTOR
1x     390 OHM 1/4W 1% METAL FILM RESISTOR
1x     10K OHM 1/4W 1% METAL FILM RESISTOR
1x     2.2K OHM 1/4W 1% METAL FILM RESISTORPotentiometer
1x     100K OHM LINEAR TAPER POTENTIOMETER
Others
1x    GUITAR BOOST DIY PCB GUITAR EFFECT
1x    1590B STYLE ALUMINUM DIECAST ENCLOSURE
1x    3MM BEZEL LED HOLDER CHROME METAL
1x    LED 3MM RED
1x    9V 9-VOLT BATTERY CLIP / CONNECTOR SNAP
1x    DC POWER JACK 2.1MM ENCLOSED FRAME WITH SWITCH
1x    6.35MM 1/4" MONO CHASSIS SOCKET / JACK
1x    6.35MM 1/4" STEREO CHASSIS SOCKET / JACK 3 TERMINALS
1x    3PDT STOMP FOOT / PEDAL SWITCH
1x    DAVIES 1510 CLONE BLACK KNOB
1x    AWG 22 BLACK HOOK-UP WIRE 1FT (30CM) STRANDED
1x    AWG 22 RED HOOK-UP WIRE 1FT (30CM) STRANDED
1x    AWG 22 WHITE HOOK-UP WIRE 1FT (30CM) STRANDED
