Bass Booster Hogs Foot
This bass booster is the Hog's Foot or Mole. It is a Linear Power Booster tuned for bass, it will give the lows you need.Steps
Categories
Status: Active
Bass Booster Hogs Foot Step 1 of 4
Effect type: boost
Pedal description
This bass booster is the Hog's Foot or Mole. It is a Linear Power Booster tuned for bass, it will give the lows you need.
Controls
- Gain: controls the gain
Kit contents
​Capacitors
2x 3.3UF 50V 105C RADIAL ELECTROLYTIC CAPACITOR 5X11MM
2x 100NF 0.1UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
Transistor
1x 2N5088 NPN GENERAL PURPOSE TRANSISTOR
Resistors
1x 1M OHM 1/4W 1% METAL FILM RESISTOR
1x 470K OHM 1/4W 1% METAL FILM RESISTOR
1x 47K OHM 1/4W 1% METAL FILM RESISTOR
1x 390 OHM 1/4W 1% METAL FILM RESISTOR
1x 10K OHM 1/4W 1% METAL FILM RESISTOR
1x 2.2K OHM 1/4W 1% METAL FILM RESISTOR
Potentiometer
1x 100K OHM LINEAR TAPER POTENTIOMETER
Others

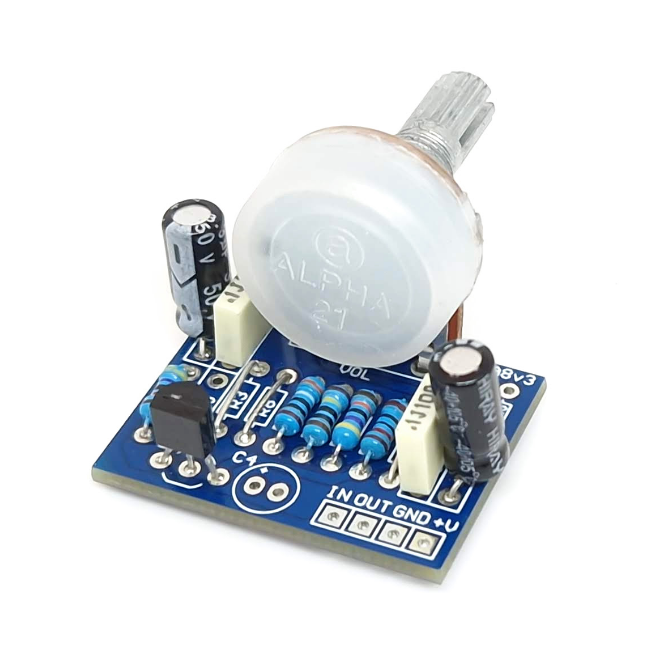

1x GUITAR BOOST DIY PCB GUITAR EFFECT
1x 1590B STYLE ALUMINUM DIECAST ENCLOSURE
1x 3MM BEZEL LED HOLDER CHROME METAL
1x LED 3MM RED
1x 9V 9-VOLT BATTERY CLIP / CONNECTOR SNAP
1x DC POWER JACK 2.1MM ENCLOSED FRAME WITH SWITCH
1x 6.35MM 1/4" MONO CHASSIS SOCKET / JACK
1x 6.35MM 1/4" STEREO CHASSIS SOCKET / JACK 3 TERMINALS
1x 3PDT STOMP FOOT / PEDAL SWITCH
1x DAVIES 1510 CLONE BLACK KNOB
1x AWG 22 BLACK HOOK-UP WIRE 1FT (30CM) STRANDED
1x AWG 22 RED HOOK-UP WIRE 1FT (30CM) STRANDED
1x AWG 22 WHITE HOOK-UP WIRE 1FT (30CM) STRANDED
