OpAmp Booster SMD

This op-amp booster PCB is based on the Micro Amp circuit and includes several tone settings. All components are pre-assembled, only the potentiometer and DIP switch need to be mounted to complete the build.
Steps
  1. Overview
  2. PCB
  3. Enclosure and wiring
  4. Drilling template
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

OpAmp Booster SMD Step 1 of 4

Dhas15_5

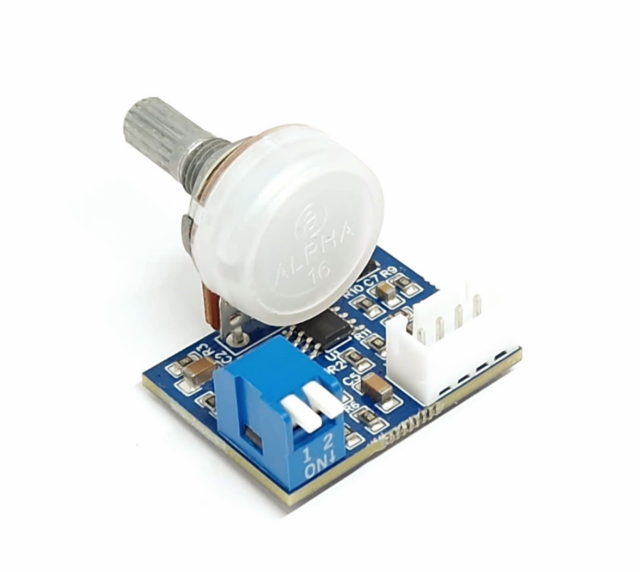

This op-amp booster PCB is based on the Micro Amp circuit and includes several tone settings. All components are pre-assembled, only the potentiometer and DIP switch need to be mounted to complete the build.
