Mini Guitar Amp (1590B)

This mini guitar amplifier is ideal for home practice, capable of driving speakers and headphones. It features tone and volume controls, with adjustable internal gain.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Drilling template
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Mini Guitar Amp (1590B) Step 1 of 4

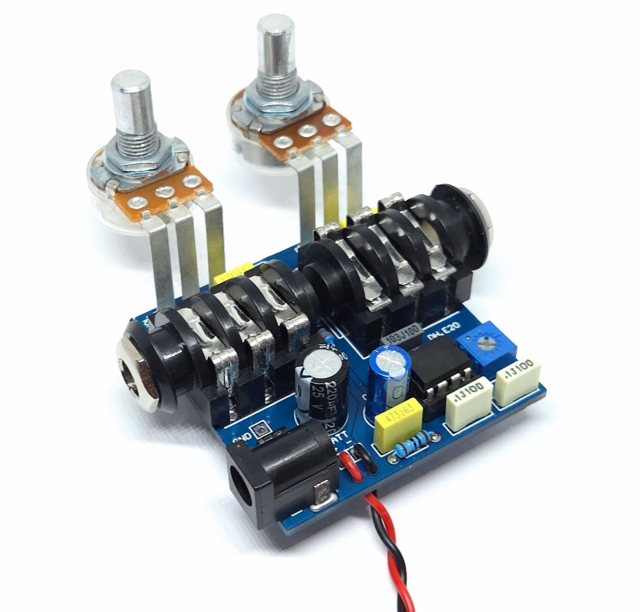

Dhe20v2_1

This mini guitar amplifier is ideal for home practice, capable of driving speakers and headphones. It features tone and volume controls, with adjustable internal gain. The PCB is designed for board-mounted potentiometers and jacks, fitting in a 1590B enclosure.
