Dual Looper

The Dual Loop allows you to alternate between two different effect loops. It provides two switchable loops (send / return) with a single foot switch.
Steps

Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Dual Looper Step 1 of 5

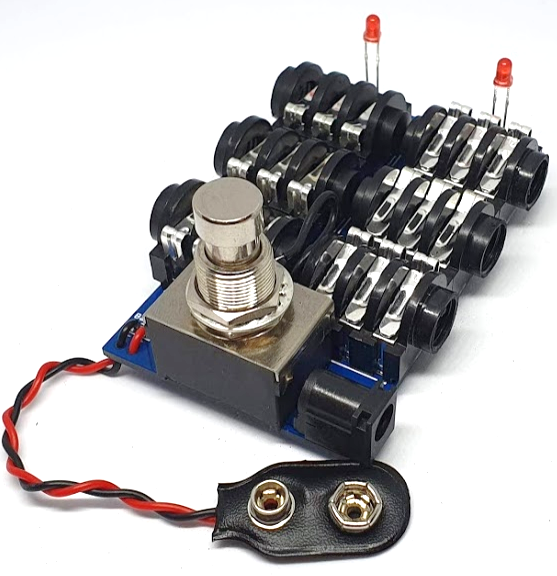

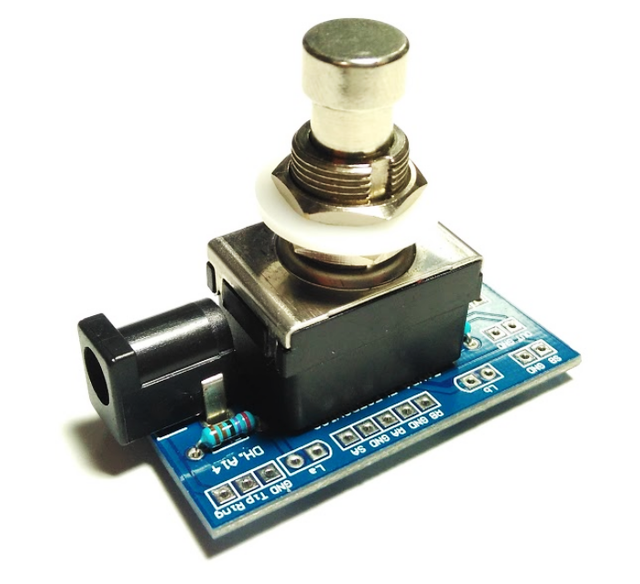

Dha14_assembled

The Dual Loop allows you to alternate between two different effect loops. It provides two switchable loops (send/return) with a single footswitch.

By using a 4PDT footswitch, the unused input will be grounded. This will avoid noises when switching between loops.

A/B Box switching between two pedals



A/B Box pedal switching between two ouputs



A/B Box pedal switching between two inputs



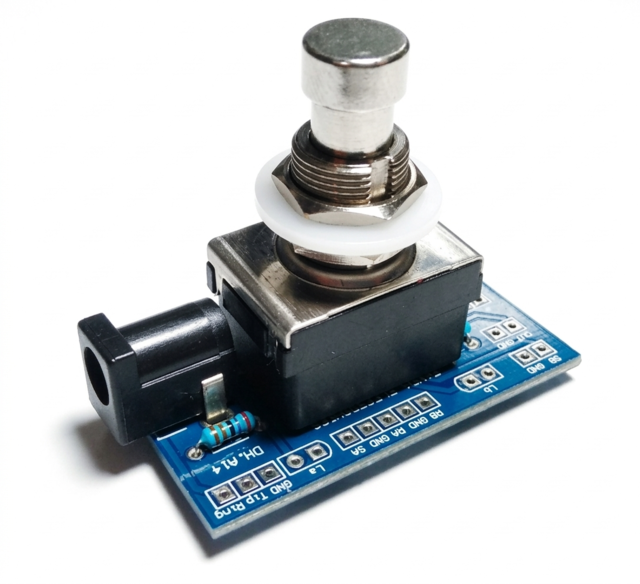

Board

1 x DUal looper diy pcb

Resistors

RLa    3.3k    3.3K OHM 1/4W 1% METAL FILM RESISTOR
RLb    3.3k    3.3K OHM 1/4W 1% METAL FILM RESISTOR

Leds
La    Green    LED 3MM GREEN
Lb    Green    LED 3MM GREEN

Switch
4PDT       4PDT STOMP FOOT / PEDAL SWITCH LATCHING

Connector
DC    2.1mm      DC POWER JACK 2.1MM BARREL-TYPE PCB MOUNT
