Dual Loop Selector (1590B enclosure)

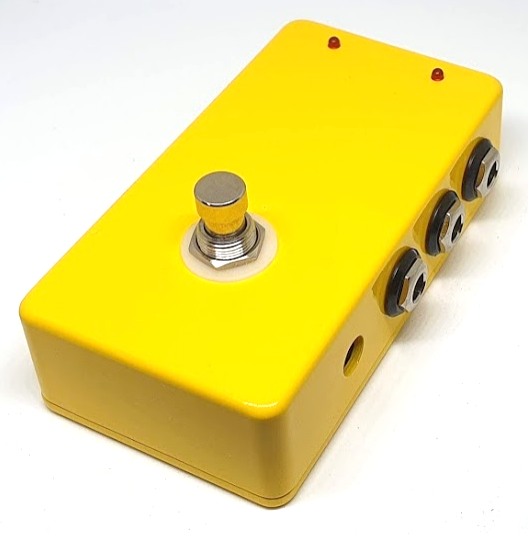

This is the Dual Loop for the 1590B enclosure. It lets you switch between two independent effects loops, providing two send/return paths controlled by a single footswitch.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Drilling template
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Drilling template Step 4 of 4

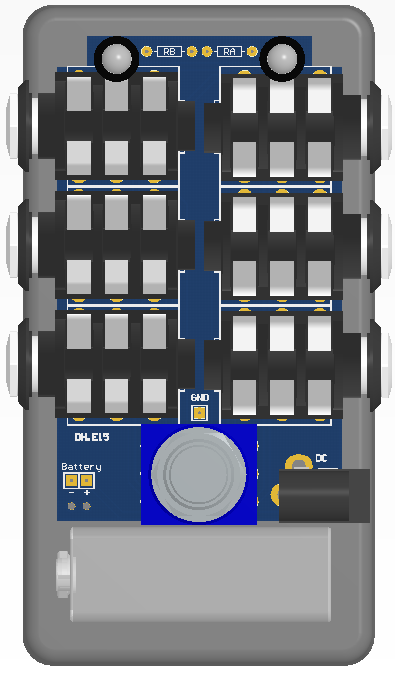

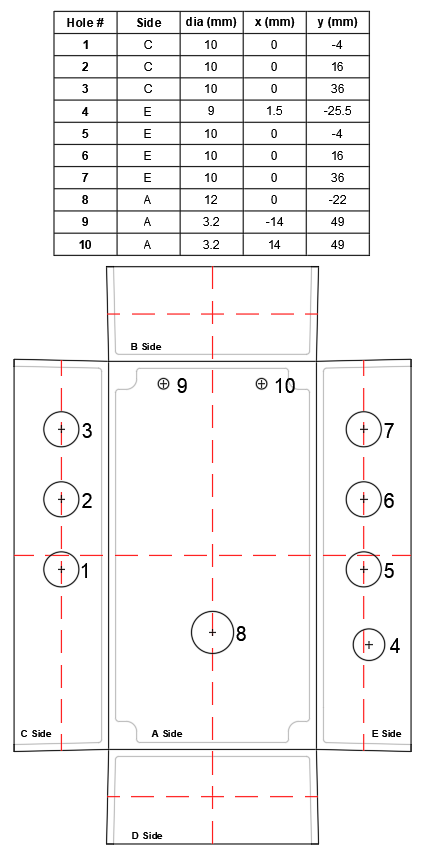

Choose an enclosure and use the custom drilling service. For personalized artwork, use the UV printing service. Add the coordenates from the following table into the online tool at drill.taydakits.com. The holes #1 to #5 are for the 1590B enclosure PCB.

Adjust the diameter of hole #3 for the DC connector (9 mm works for most of the connectors).

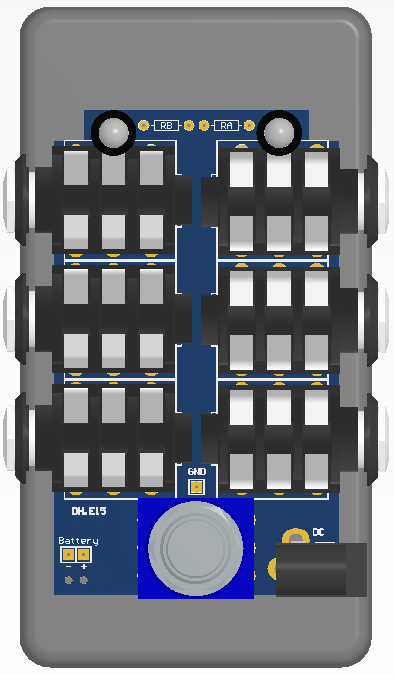

Adjust the Y coordinates if no 9V battery is used.
