Box of Metal

The Box of Metal is a high-gain distortion pedal designed for metal and hard rock. It incorporates a three-knob EQ for tone control.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Enclosure and wiring
  5. Enclosure drilling
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Box of Metal Step 1 of 5

Dhc12v2_4

The Box of Metal is a high-gain distortion pedal designed for metal and hard rock. It incorporates a three-knob EQ for tone control. This DIY project simplifies the original circuit by omitting the noise gate.

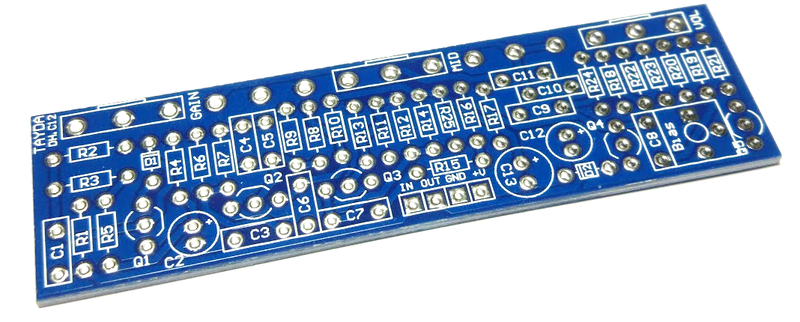

PCB
