The Zendrive delivers the perfect balance of saturation and tone. It comes with four knobs to control the gain, volume, tone and voicing.
Steps

Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Enclosure and wiring Step 4 of 5

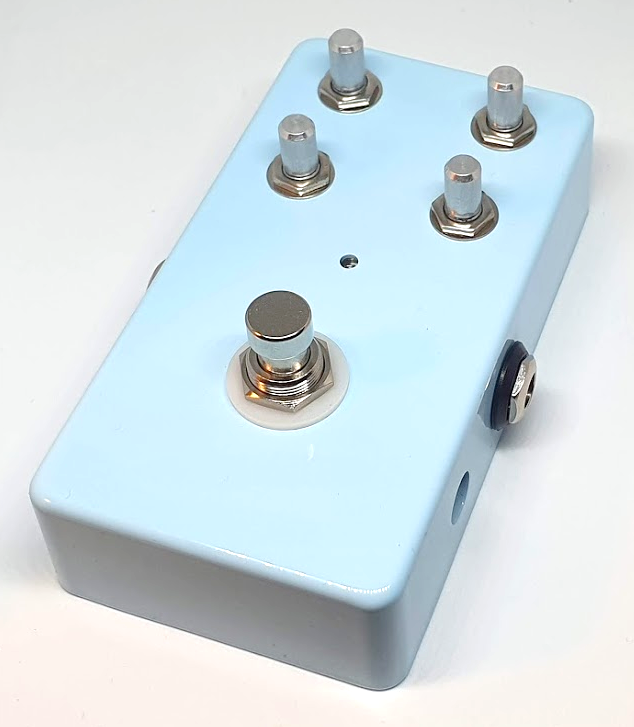

Mount the assembled PCB and the rest of the components (DC and 3.5 jack connectors, 9V battery clip, 3PDT foot switch, led...) in a metal enclosure. Connect the ground of the circuit to the enclosure (the GND of the input and output jacks are in contact with the enclosure). The following figure shows the components mounted in a 1590B enclosure.





Snap off the anti-rotation tab on top of the potentiometers with a pair of flat nose spliers.

WIRING

Use a 24 AWG stranded wire and connect all the elements as indicated in the following figure. No matter the order to connect the ground (GND) as far as all the components are connected. The diode led requires a current limiter resistor, you can use values in between 2.2k and 4.7k for regular leds. The following figure shows the wiring with a negative tip DC connector (standardized Boss style 2.1 mm with a negative tip orientation).

PCB FOR 3PDT FOOTSWITCH (PCB and Instructions)

The PCB for 3PDT footswitch will help you to wire all the components, keep a neat circuit and reduce the noise. This PCB also includes pads for the led and its current limiter resistor.

PCB FOR 1590B ENCLOSURE (PCB and Instructions)

If you are going to use a 1590B enclosure, this PCB will definitely help to build your pedal. Led, jacks, and footswitch are mounted on the PCB. You will only need to wire the battery clip and the effect PCB. Drilling templates are available in the attachments.

To connect the 1590BB enclosure PCB to the effect PCB you can use a 4 pin connector or solder the cables as indicated in the following figure. The PCB pins are marked as "GND" ,"+V", "FROM FX" and "TO FX". Connect "FROM FX" to the output of the effect PCB, and "TO FX" to the input of the effect PCB.
