Tone Bender

The Tone Bender is one of the most iconic fuzz effects from the 60s. With this PCB you can build the original or many other variants using either PNP or NPN transistors.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Enclosure and wiring
  5. Enclosure drilling
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Tone Bender Step 1 of 5

Dhb15_assembled

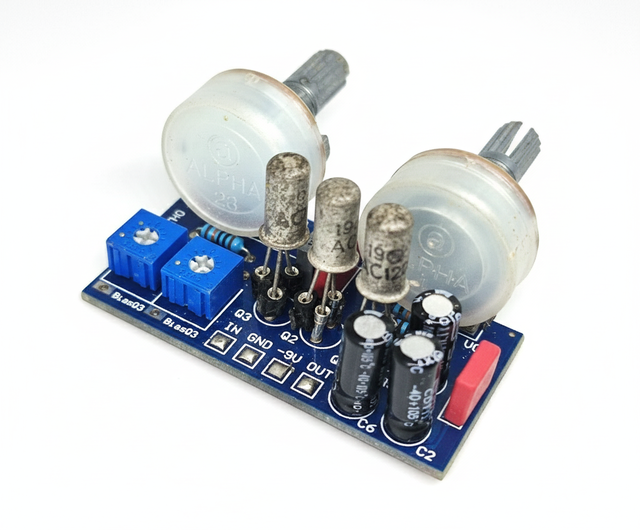

The Tone Bender is one of the most iconic fuzz effects from the 60s. With this PCB you can build the original or many other variants using either PNP or NPN transistors. The PCB includes dedicated pads for trimmers, allowing precise adjustment of the circuit’s behavior.
