Centaur Overdrive

This is the legendary Centaur overdrive, one of the most iconic guitar pedals ever made. It offers a versatile and transparent overdrive that preserves the natural character of the guitar and amp.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Enclosure and wiring
  5. Drilling template
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Centaur Overdrive Step 1 of 5

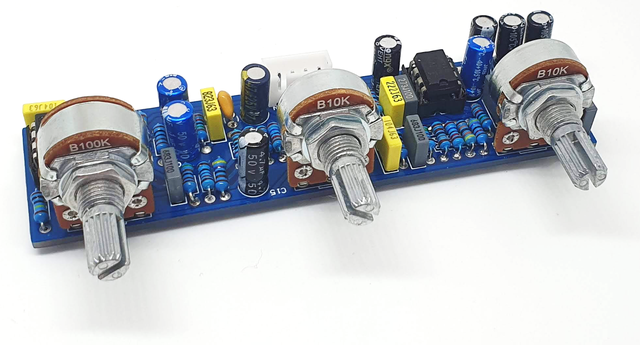

Dhd16v3_3

This is the legendary Centaur overdrive, one of the most iconic guitar pedals ever made. Its internal booster delivers triple the headroom of a standard pedal, offering a versatile and transparent overdrive that preserves the natural character of the guitar and amp.

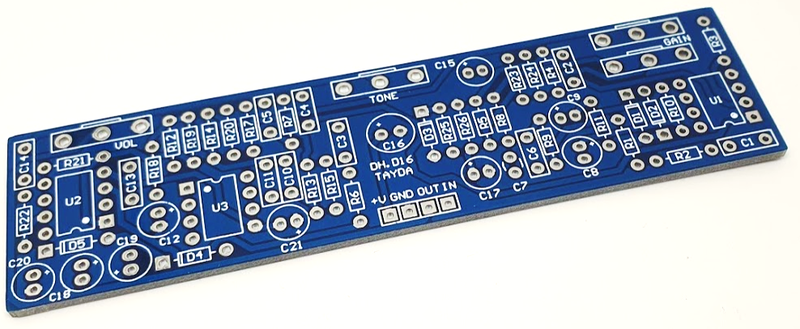

PCB
