Charge Pump

This versatile charge pump generates both –9 V and +18 V from a single +9 V power source.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Enclosure and wiring
Categories
DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Charge Pump Step 1 of 4

Dha5v3_2

This versatile charge pump generates both –9 V and +18 V from a single +9 V power source. The –9 V output is perfect for creating a dual power supply or powering positive-ground effects, such as a Fuzz Face or Tone Bender. The +18 V output provides overdrives and boosters with extra headroom and clarity.



POWER SUPPLY CHAIN WITH POSITIVE GROUND PEDAL

A positive ground pedal cannot be directly connected to the power supply in chain with your other negative ground pedals. Use this CB to build a voltage inverter and power your positive ground pedal in chain with the rest of your pedals.

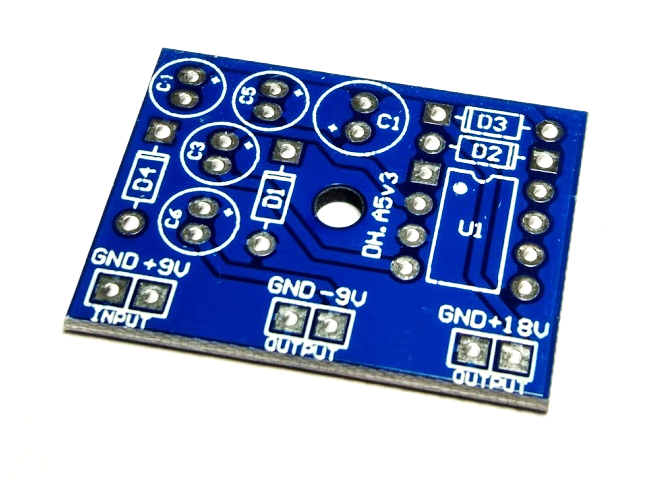

PCB
