Box of Rock (3 knobs)

The Box of Rock pedal is designed to emulate the classic JTM45 tone. This project simplifies the original circuit by removing the boost stage, fitting into a 1590B enclosure with three control knobs.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Enclosure and wiring
  5. Drilling template
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Box of Rock (3 knobs) Step 1 of 5

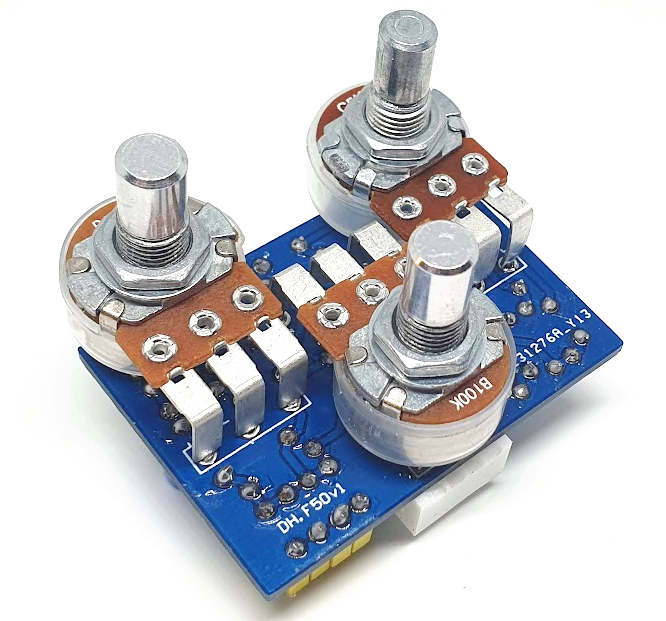

Dhf50_2

The Box of Rock pedal is designed to emulate the classic JTM45 tone. It offers great headroom and allows you to control the distortion level directly from the guitar's volume knob. This project simplifies the original circuit by removing the boost stage, fitting into a 1590B enclosure with three control knobs.





BOX OF ROCK FOR 1590BB

For builds using the larger 1590BB enclosure, check out the Box of Rock for 1590BB. This project includes the boost stage, fitting into a 1590BB enclosure with four control knobs and two footswitches.

Dhc2_assembled
