AC RC Booster SMD Step 1 of 4

Dhfs60_1

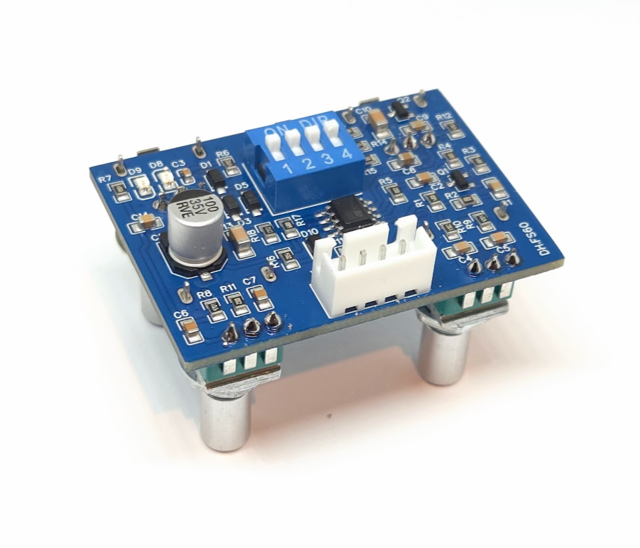

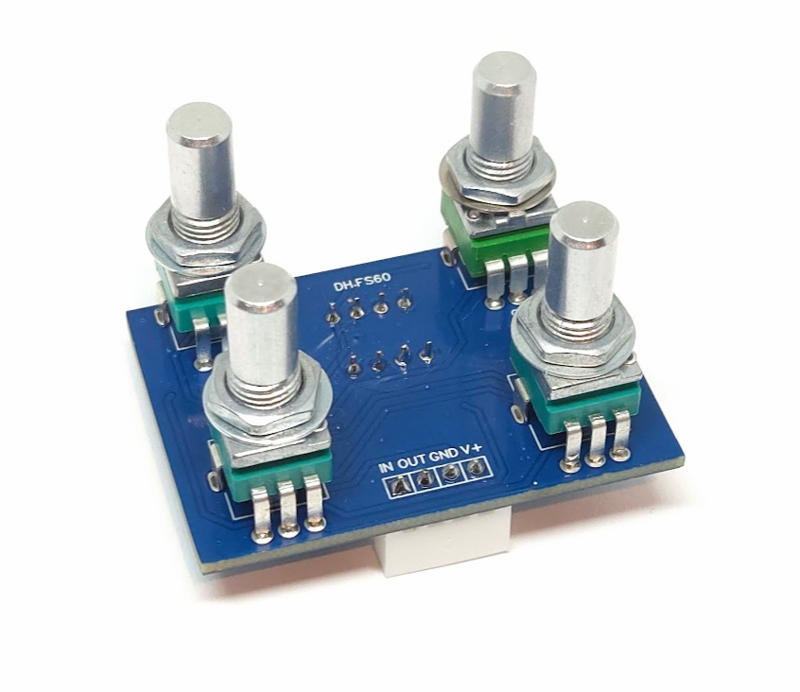

The AC Booster and RC Booster are legendary pedals, known for smooth overdrive and transparent clean boost. Build your own version with this pre-assembled PCB. It features a footprint for four DIP switches, giving you control over clipping options. Final assembly simply requires mounting the potentiometers and switches.
