555 Amplifier

In its most simplistic form an amplifier can be built with a single 555 timer. In this project, a 200mA of current capability is enough to drive a small speaker, which makes it a good replacement for a low power amplifier. But when more power is needed to

Created by Violin314
Status: Active

Build It Step 3 of 3

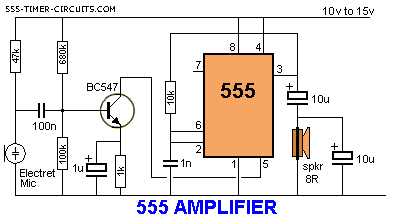

The Schematic is below
