USB PORTABLE CHARGER!!!!

USB CHARGER KIT: Charges USB Devices
Steps
  1. Overview
  2. Intro: USB Charger
  3. STEP 1: Soldering L78M05CV Voltage Regulator To Board
  4. STEP 2: SOLDER SCRAP METTEL PINS TO FEMALE USB
  5. STEP 3: Solder Female USB To Board
  6. STEP 4: Adding The Power
  7. STEP 5: SOLDER SCRAP METTEL PINS TO Toggle Switch
  8. STEP 6: Solder Toggle Switch To Board & LED
  9. STEP 7: Solder Resistor 1
  10. STEP 8: Solder 2nd Resistor
  11. Step 9: TEST TIME
  12. STEP 10: Line Tin With Electrical Tape
  13. Step 11: ENJOY =]
Created by Maxx
Status: Active
675b5ba89f7a8c5785fb960e601503d5?s=30

Intro: USB Charger Step 2 of 13

LETS GET STARTED

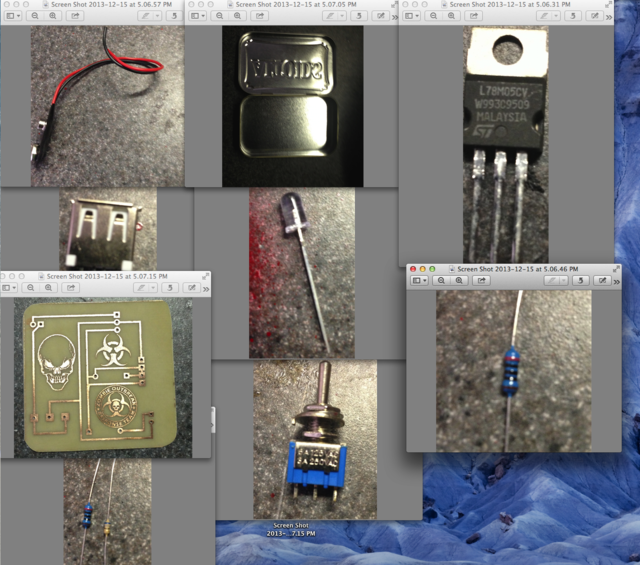

Things you will need :

1. L78MO5CV Voltage Regulator http://www.taydaelectronics.com/ic-integrated-circuits/voltage-regulators/lm7805-l7805-7805-voltage-regulator-ic-5v-1-5a.html

2. Toggle Switch http://http://www.taydaelectronics.com/mini-toggle-switch-spdt-on-on.html

3. LED [ any color :) ] http://http://www.taydaelectronics.com/leds/led-3mm-green-water-clear-super-bright.html

4. Female USB port http://www.taydaelectronics.com/usb-type-a-female-connector.html

5. Resistor http://www.taydaelectronics.com/10-x-resistor-680-ohm-1-4w-5-carbon-film-pkg-of-10.html

6. Resistor http://www.taydaelectronics.com/10-x-resistor-200-ohm-1-4w-5-carbon-film-pkg-of-10.html

7. 9V battery Clip http://www.taydaelectronics.com/9v-9-volt-battery-clip-connector.html

8. Some type of Board http://www.taydaelectronics.com/hardware/prototyping-boards/small-stripboard-94x53mm-copper.html

9. And Encloser Or Altoids Tin http://www.taydaelectronics.com/hardware/enclosures/1590b-style-aluminum-diecast-enclosure.html
