Satisfaction Fuzz
The Satisfaction Fuzz delivers a classic and smooth fuzz straight from the 60s.Steps
Categories
Status: Active
Designators and components Step 2 of 5
COMPONENTS
PCB
PCB SATISFACTION FUZZ PCB
Capacitors
C1 22n 22NF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
C2 22n 22NF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
C3 1.5n 1.5NF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
C4 4.7n 4.7NF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
C5 100u 100UF 35V ELECTROLYTIC CAPACITOR 6X11MM
Transistors
Q1 2N2222 2N2222 NPN GENERAL PURPOSE TRANSISTOR
Q2 2N3906 2N3906 PNP GENERAL PURPOSE TRANSISTOR
Resistors
R1 150k 150K OHM 1/4W 1% METAL FILM RESISTOR
R2 560k 560K OHM 1/4W 1% METAL FILM RESISTOR
R3 560k 560K OHM 1/4W 1% METAL FILM RESISTOR
R4 18k 18K OHM 1/4W 1% METAL FILM RESISTOR
R5 18k 18K OHM 1/4W 1% METAL FILM RESISTOR
R6 1M 1M OHM 1/4W 1% METAL FILM RESISTOR
Diodes
D1 Not mounted
D2 Not mounted
Potentiometers
ATTACK 100k-B 100K OHM LINEAR TAPER POTENTIOMETER
VOL 100k-A 100K OHM LOG POTENTIOMETER
PCB

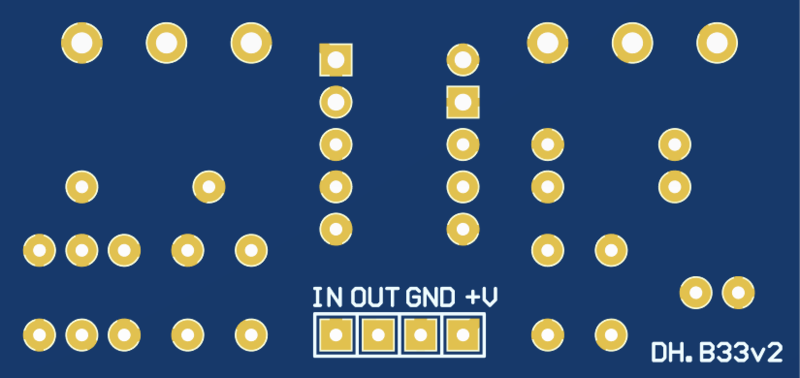

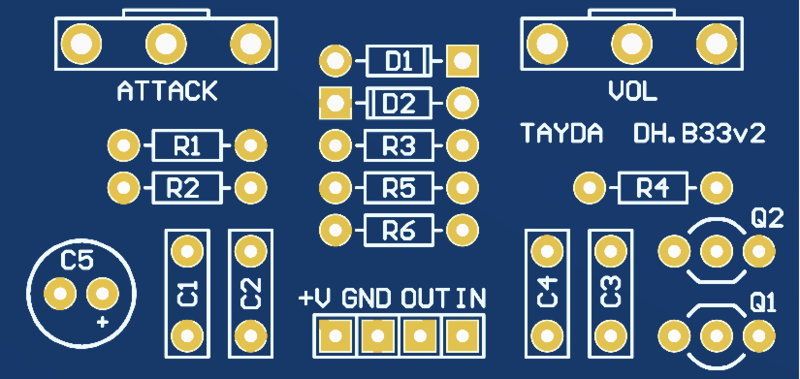

The DHB33 PCB can be used to build either the Boss Tone Fuzz or the Satisfaction Fuzz.

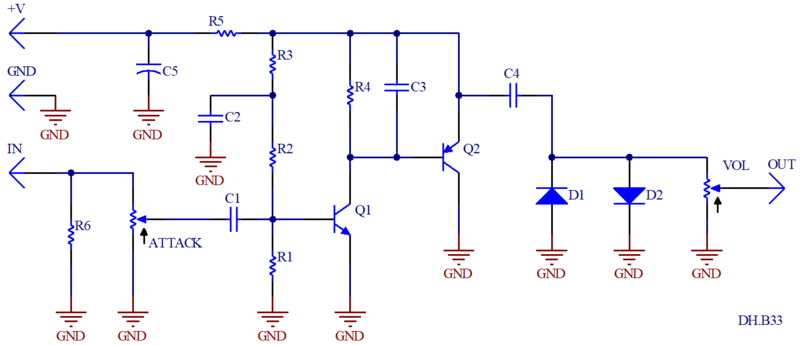

SCHEMATIC
