Rangemaster

The Rangemaster is a legendary treble booster from the 1960s, used by Eric Clapton and Brian May. It produces a brighter tone, adding color to the signal.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Enclosure and wiring
  5. Enclosure drilling
Categories
DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Rangemaster Step 1 of 5

Dha2v4_3

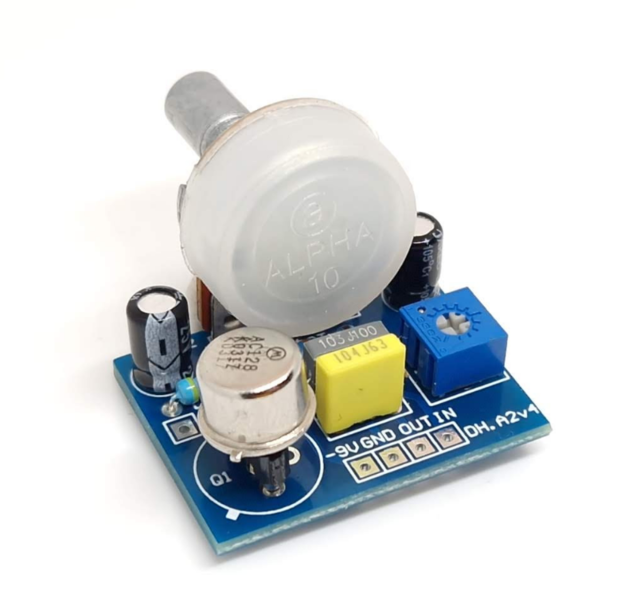

The Rangemaster is a legendary treble booster from the 1960s, used by Eric Clapton and Brian May. It produces a brighter tone, adding color to the signal.

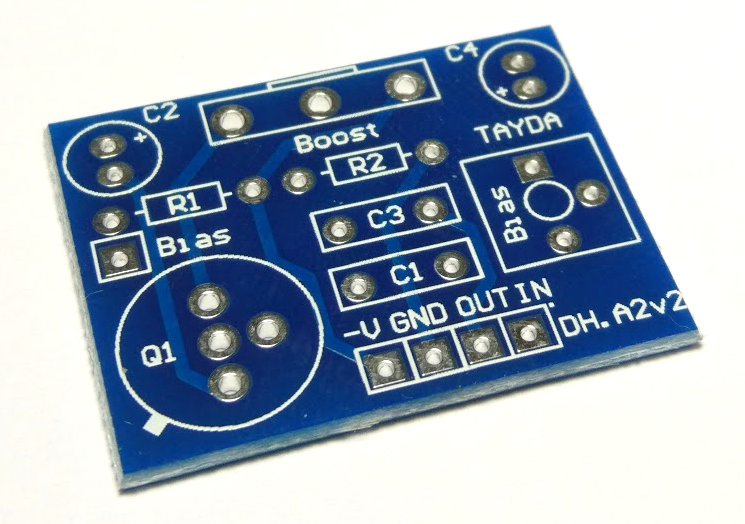

PCB



PCB WITH DC INVERTER

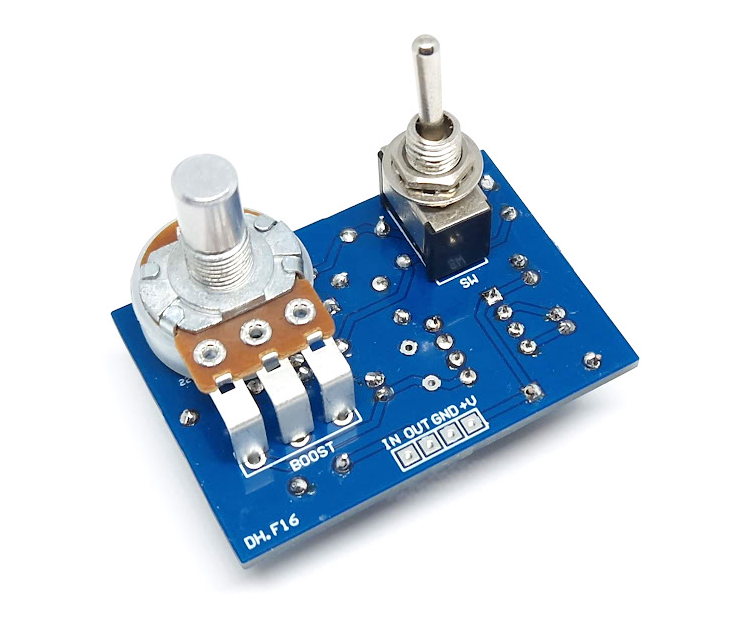

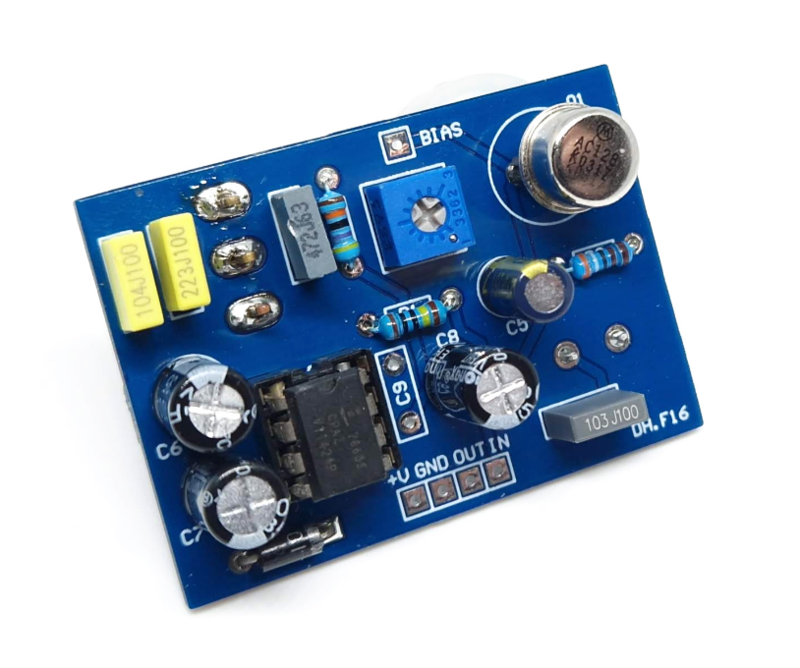

A PCB of the Range Master with a DC inverter and treble frequency selector is available. Check out the Range Master (with DC inverter) for more details.
