PCB for 125B enclosure

This PCB simplifies building your DIY guitar pedal in a 125B enclosure. With the LED, jacks, and footswitch mounted directly on the board, you only need to wire the battery and the effect PCB.
Steps
  1. Overview
  2. Designators and components
  3. Enclosure
  4. PCB assembly
  5. Wiring
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

PCB for 125B enclosure Step 1 of 5

Dhe10v1_7

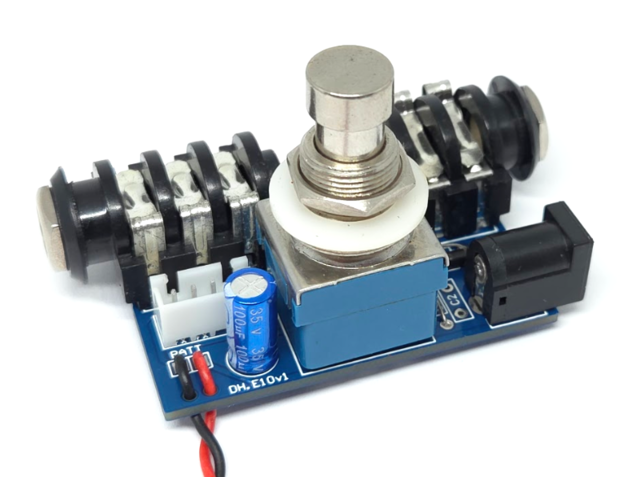

This PCB simplifies building your DIY guitar pedal in a 125B enclosure. With the LED, jacks, and footswitch mounted directly on the board, you only need to wire the battery and the effect PCB.

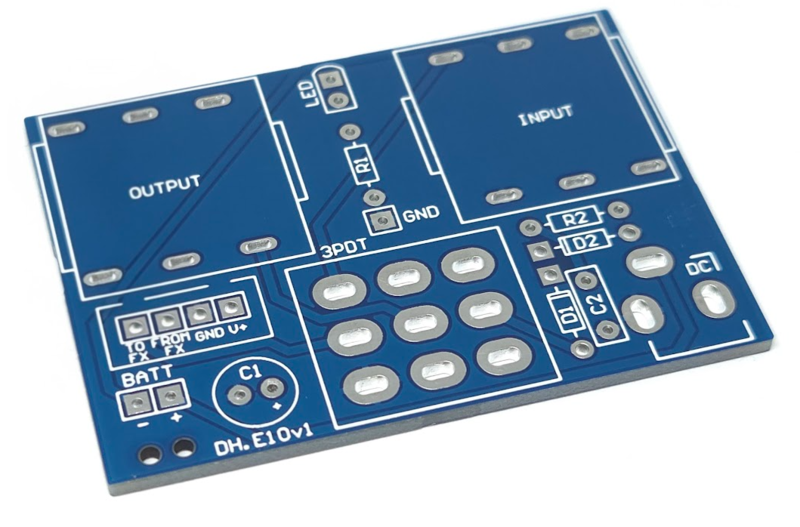

PCB
