MOSFET Booster
This pre-assembled PCB features the classic MOSFET stage found in iconic effects like the Super Hard On, offering customizable input impedance and treble control.Steps
Categories
Status: Active
PCB Step 2 of 4
COMPONENTS
PCB
PCB MOSFET BOOSTER SMD PCB
Potentiometer
GAIN 5k-C 5KC ANTI-LOG POTENTIOMETER
DIP Switch
DIP SWITCH 3 POSITIONS (Optional)
Connector
4 PINS XH-2.54 MALE CONNECTOR (Optional)
PCB

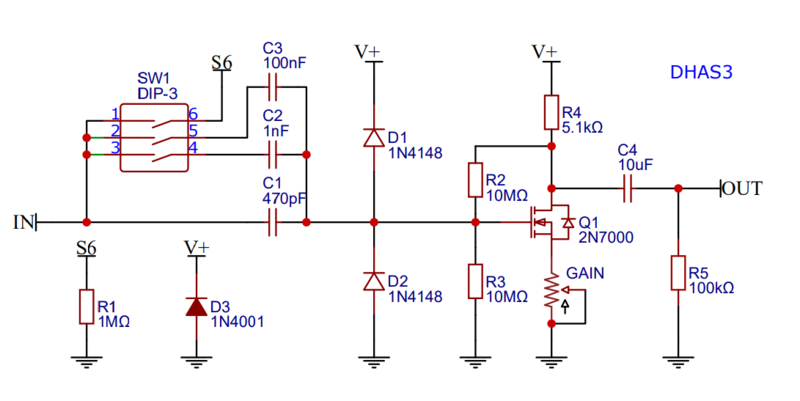

SCHEMATIC
DIP SWITCH SETTINGS
Use a DIP switch for versatility, or wire jumpers to create a fixed configuration. With the switch in the "ON" position, the circuit is closed (shorted), which is the same as creating a permanent connection with a wire jumper.
Original effect setting
S1 OFF, S2 ON, S3 OFF: High input impedance and flat frequency response.
Input impedance
S1 ON: Lower input impedance to minimize the switch "pop" noise.
Frequency response.
S2 ON, S3 OFF: Flat frequency response.
S2 OFF, S3 ON: Flat response at low gain. Light treble booster at high gain.
S2 OFF, S3 OFF: Light treble booster at low gain. Treble booster at high gain.
