Micro Amp Booster

The Micro Amp is a classic and widely used clean booster. It provides a transparent boost, amplifying your signal without altering the guitar tone.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Enclosure and wiring
  5. Drilling template
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Designators and components Step 2 of 5

COMPONENTS

PCB
PCB                  MICRO AMP BOOSTER PCB

Capacitors
C1      100n      100NF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
C2      4.7u       4.7UF 50V ELECTROLYTIC CAPACITOR 5X11MM
C3      47p        47PF 50V CERAMIC DISC CAPACITOR
C4      10u        10UF 50V ELECTROLYTIC CAPACITOR 5X11MM (Original value 15u)
C5      1u          1UF 50V ELECTROLYTIC CAPACITOR 5X11MM

IC
IC1    TL071     TL071 OPERATIONAL AMPLIFIER

Resistors
R1      22M       22M OHM 1/4W 1% METAL FILM RESISTOR
R2      1k         1K OHM 1/4W 1% METAL FILM RESISTOR
R3      2.7k      2.7K OHM 1/4W 1% METAL FILM RESISTOR
R4      47k       47K OHM 1/4W 1% METAL FILM RESISTOR
R5      470       470 OHM 1/4W 1% METAL FILM RESISTOR
R6      10k       10K OHM 1/4W 1% METAL FILM RESISTOR
R7      100k     100K OHM 1/4W 1% METAL FILM RESISTOR
R8      10M      10M OHM 1/4W 1% METAL FILM RESISTOR
R9      100k     100K OHM 1/4W 1% METAL FILM RESISTOR

Potentiometer
GAIN    500k-C    500KC ANTI-LOG TAPER POTENTIOMETER



PCB

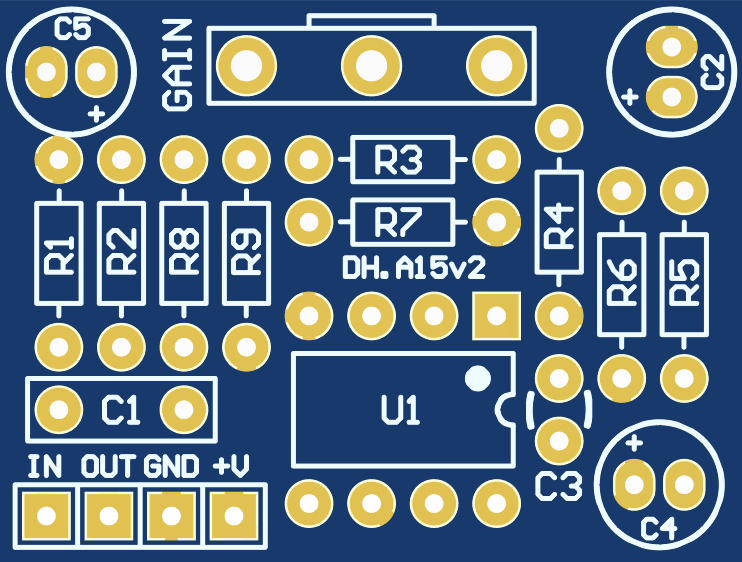

SCHEMATIC
