Klon Buffer

The Klon Buffer is one of the most popular guitar buffers. This simple and effective circuit restores the high frequencies lost through long cables or large pedal chains.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Enclosure and wiring
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Klon Buffer Step 1 of 4

Dha10v1_4

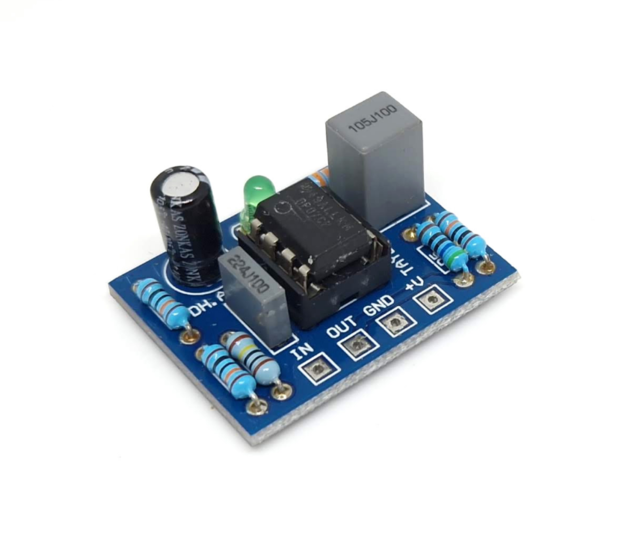

The Klon Buffer is one of the most popular guitar buffers. This simple and effective circuit restores the high frequencies lost through long cables or large pedal chains. It offers high input impedance, low output impedance, and unity gain.

This circuit does not have any control, just connect the input, the output, and the power supply. Place it before a long cable or as the first pedal in your chain, and use it to drive pedals with low input impedance.

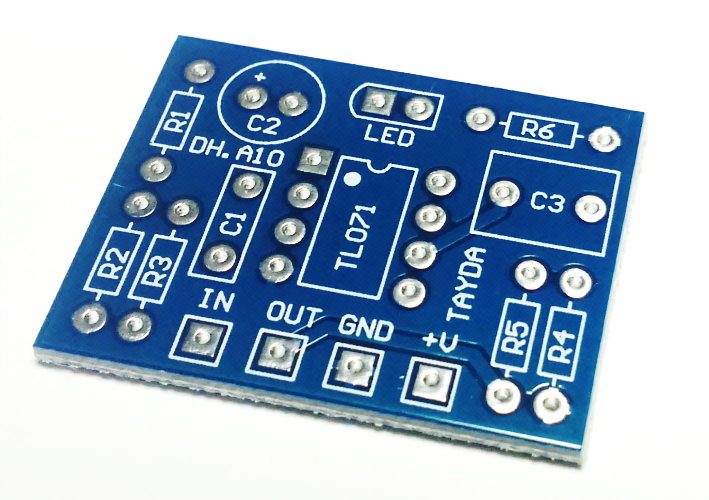

PCB
