EA Tremolo

This is the EA Tremolo, classic and simple DIY guitar effect project. This pedal varies the volume automatically over the time with speed and intensity controls.
Steps
  1. Overview
  2. Designators and components
  3. General description of components
  4. PCB assembly
  5. Enclosure and wiring
  6. Enclosure drilling
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

EA Tremolo Step 1 of 6

Dhf1_assembled_3

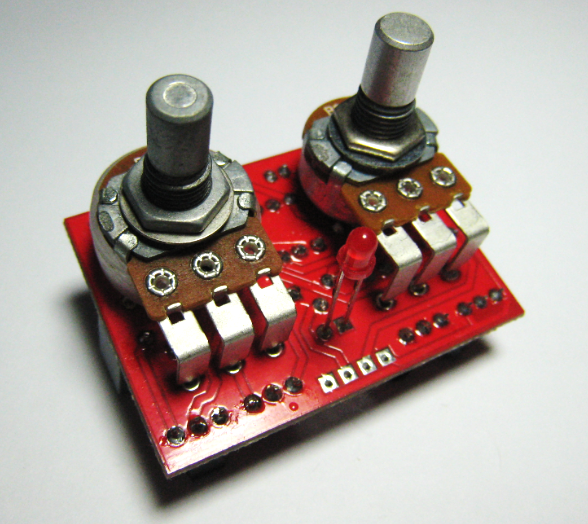

This is the EA Tremolo, classic and simple DIY guitar effect project. This pedal varies the volume automatically over the time with speed and intensity controls. It also includes an LED to indicate the rate of the tremolo.
