Basic Relay Demo

This is a basic demonstration for using and understanding the relay.

Created by E7 Sal
Status: Active

Connect it Step 4 of 5

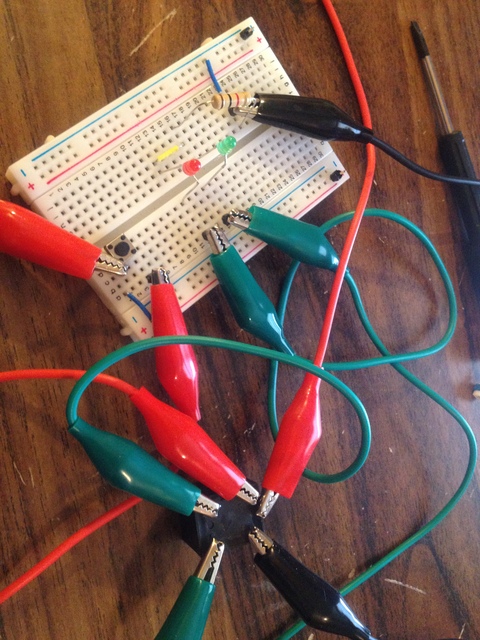

The bread board layout is pretty straight forward for the SPST relay. I did not have luck with customizing the Fritzing relay object so I decided to include my Fritzing layout to avoid confusion. However, the concept should be the same no matter what kind of relay you use.

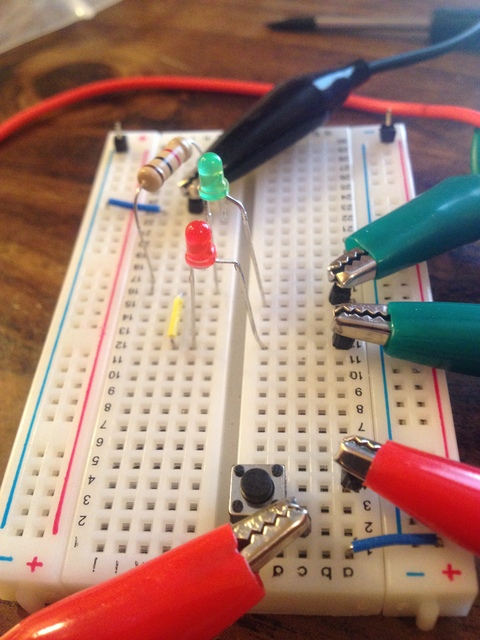

I like to use the male pin headers with the alligator clips. This helped get around the issue that the relay did not fit easily into the breadboard.
