Amp Eleven

This pedal provides a classic overdriven tube amp tone with an extra gain booster.
Steps
  1. Overview
  2. Designators and components
  3. PCB assembly
  4. Enclosure and wiring
  5. Drilling template
Categories
Tayda Electronics Kits, DIY Projects, DIY Guitar Effects
Created by DHEA
Status: Active
6ad5cfedb16d6a272994ad5c2b2b82c7?s=30

Drilling template Step 5 of 5

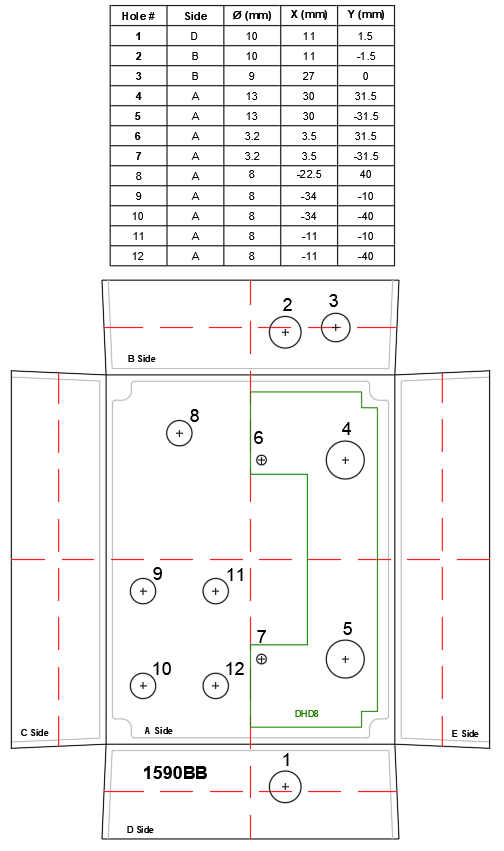

Choose an enclosure and use the custom drilling service. For personalized artwork, use the UV printing service. Add the coordinates from the following table into the online tool at drill.taydakits.com. The holes #1 to #5 are for the 1590BB enclosure PCB.

Adjust the diameter of hole #3 for the DC connector (9 mm works for most of the connectors).

Adjust the diameter of hole #5 for the LED as follows (for painted enclosures):

  • 3 mm LED: 3.2 mm
  • 3 mm LED metal holder: 6 mm
  • 5 mm LED: 5.2 mm
  • 5 mm transparent holder: 6.5 mm
