Super Hard On

Rated as one of the best guitar boosters, this classic and simple DIY project is the Super Hard On. The gain is a negative-feedback control styled after classic 60's recording console inputs. It is perfect to obtain the best of a classic amp and guitar.
Steps

Created by DHEA
Status: Active
Cfbfe5913a91eb0b73dda7d6f6ecab58?s=30

Super Hard On Step 1 of 4

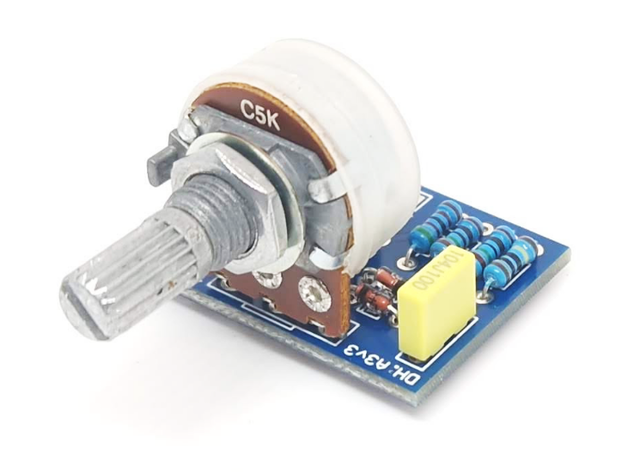

Dha3_photo

Effect type: boost

Pedal description

Rated as one of the best guitar boosters, this classic and simple DIY project is the Super Hard On. The gain is a negative-feedback control styled after classic 60's recording console inputs. It is perfect to obtain the best of a classic amp and guitar. It makes your guitar bigger and pushes the amp, causing a natural overload.

Controls

  • Boost: controls the gain

Kit contents

Capacitors
1x     100NF 0.1UF 100V 5% POLYESTER FILM BOX TYPE CAPACITOR
1x     10UF 50V 105C RADIAL ELECTROLYTIC CAPACITOR 5X11MM
Transistor
1x     BS170 BS170RLRAG MOSFET N-CHANNEL 60V 0.5A
Diodes
2X    1N4148 SWITCHING SIGNAL DIODE
1x     LED 3MM RED
Resistors
1x     1M OHM 1/4W 1% METAL FILM RESISTOR
2x    10M OHM 1/4W 1% METAL FILM RESISTOR
1x     5.1K OHM 1/4W 1% METAL FILM RESISTOR
1x     100K OHM 1/4W 1% METAL FILM RESISTOR
1x     2.2K OHM 1/4W 1% METAL FILM RESISTOR
Potentiometer
1x     5K OHM C5K 5KC ANTI-LOG TAPER POTENTIOMETER
Hardware

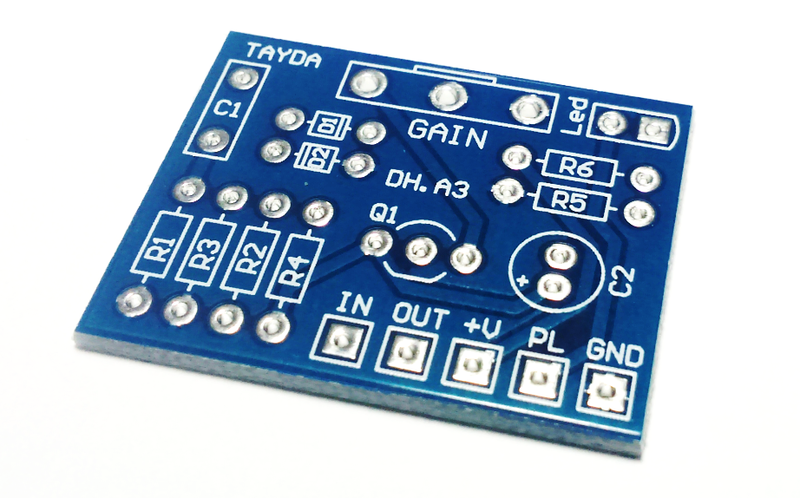

1x     SUPER HARD ON DIY PCB GUITAR EFFECT
1x     1590B STYLE ALUMINUM DIECAST ENCLOSURE
1x     3MM BEZEL LED HOLDER CHROME METAL
1x     9V 9-VOLT BATTERY CLIP / CONNECTOR SNAP
1x     DC POWER JACK 2.1MM ENCLOSED FRAME WITH SWITCH
1x     6.35MM 1/4" MONO CHASSIS SOCKET / JACK
1x     6.35MM 1/4" STEREO CHASSIS SOCKET / JACK 3 TERMINALS
1x     3PDT STOMP FOOT / PEDAL SWITCH
1x     DAVIES 1510 CLONE BLACK KNOB
1x     AWG 22 BLACK HOOK-UP WIRE 1FT (30CM) STRANDED
1x     AWG 22 RED HOOK-UP WIRE 1FT (30CM) STRANDED
1x     AWG 22 WHITE HOOK-UP WIRE 1FT (30CM) STRANDED
